POE29U-1AT(PL)D-R Phihong 30W Injector

POE29U-1AT(PL)D-R Phihong 30W POE+ Single Port Midspan / injector. This very popular injector comes stacked full of approvals in a sealed package non vented case. 140mm long x 65mm wide and 36mm high. There are two moulded extrusions to enable it to be fixed to a flat surface.This Phihong PoE Injector is a powerful device that complies with the IEEE 802.3at (PoE+) standards and provides a maximum output of 30 watts. This injector allows for the simultaneous transmission of data and power over a single Ethernet cable. This significantly simplifies the installation of network devices such as IP cameras, VoIP phones, and wireless access points.

Power Never Ends.

The Phihong PoE Injector is a powerful device that complies with the IEEE 802.3at (PoE+) standards, and provides a maximum output of 30 watts. This injector allows for the simultaneous transmission of data and power over a single Ethernet cable. Significantly this simplifies the installation of network devices such as IP cameras, VoIP phones, and wireless access points. The Phihong PoE Injector is a powerful device that complies with the IEEE 802.3at (PoE+) standard. This provides a maximum output of 30 watts. This injector allows for the simultaneous transmission of data and power over a single Ethernet cable. This significantly simplifies the installation of network devices such as IP cameras, VoIP phones, and wireless access points.

Replaces POE29U-1AF, POE21U-1AF, POE20U-560(G), POE29U-1AT, POE30U-560G(HT)-R, POE31U-1AT, POE36U-1AT, POE20U-560G.

Three wire IEC320 C14 input with earth. OPERATING TEMPERATURE RANGE -20 *C to + 50 *C. Non Operating Temp Range -20 *C to + 70 *C. GIGABIT and IEE802.3AT Spec. Ideal for installations in equatorial regions India, South Africa, Central America, Asia.

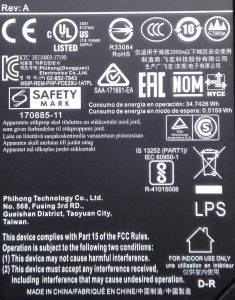

Fully approved with Worldwide Approvals included. For example:-

cUL/UL(60950) / (62368-1), CB, CCC, BSMI, RCM, NOM/NYCE, CU(EAC), IRAM (TUV-s), CE (IEC60950-1) / (IEC62368-1), RCM, NOM/NYC, PSB, KC + KCC, EAC, BIS.

Output :- 56vDC 0.536A Regulation +1V to -2V, output on + Pins 3,6 and – Pins 1,2

Equally important are the Shielded RJ45’s, the higher 2.5G Compatible speed, and LPS (Limited Power Source).

The Efficiency is Typically 80% and with one year warranty.

Full Datasheet HERE
